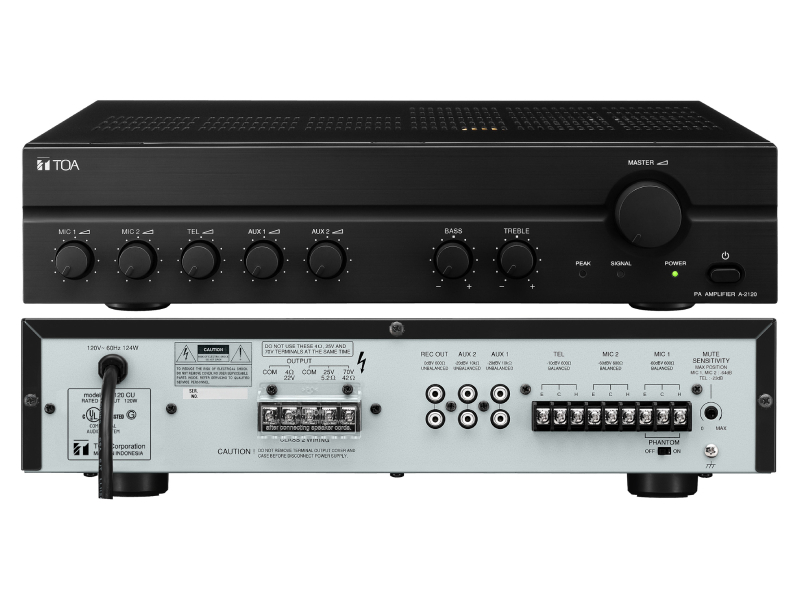

TOA CU version Mixer Power Amplifier - A2120CU
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Literature
The A-2120 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
| Specifications | |
|---|---|
| Power Source | 120 V AC |
| Rated Output | 120 W |
| Power Consumption | 124 W (EN60065), 260 W (AC operation at rated output) |
| Frequency Response | 50 - 20,000 Hz (±3 dB) |
| Distortion | 1% or less at 1 kHz, 1/3 rated power |
| Input | MIC 1, 2: -60 dB*, 600 Ω, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33"), TEL: -10 dB*, 10 kΩ, balanced, M3.5 screw terminal, distance between barriers: 8.3 mm (0.33"), AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack |
| Output | Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33"), High impedance: 42 Ω (70 V), 5 Ω (25 V), Low impedance: 4 Ω (22 V), Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Phantom Power | DC +21 V (MIC 1) |
| S/N Ratio | 60 dB or more |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Muting | MIC 1, MIC 2, and TEL have a priority function to attenuate AUX1 and AUX 2 input signals by 30 dB. (Sensitivity level for MIC 1, MIC 2, and TEL adjustable) Priority level among MIC 1, MIC 2, and TEL is the same. |
| Finish | Panel: ABS resin, black, Case: Steel plate, black |
| Dimensions | 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19") |
| Weight | 12.5 kg (27.56 lb) |
