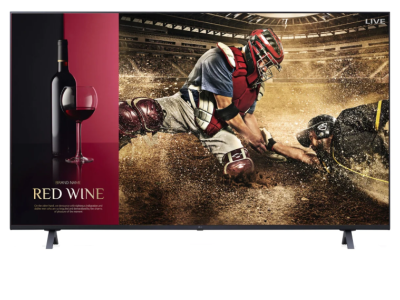

86" LG 86UR340C9UD UHD Signage for Live TV
Authorized Dealer
Price Match Guarantee
Features
- 4K Ultra HD Resolution
- Slim Depth
- Business Oriented
- Easy Management
LG UHD Signage for Live TV & Promotion
Superb Picture Quality with Ultra HD Resolution
With the resolution that is 4 times higher than FHD, it makes the details of the contents more vivid and realistic. In addition, the UR340C series supports HDR10 to deliver intense colours and deep black.

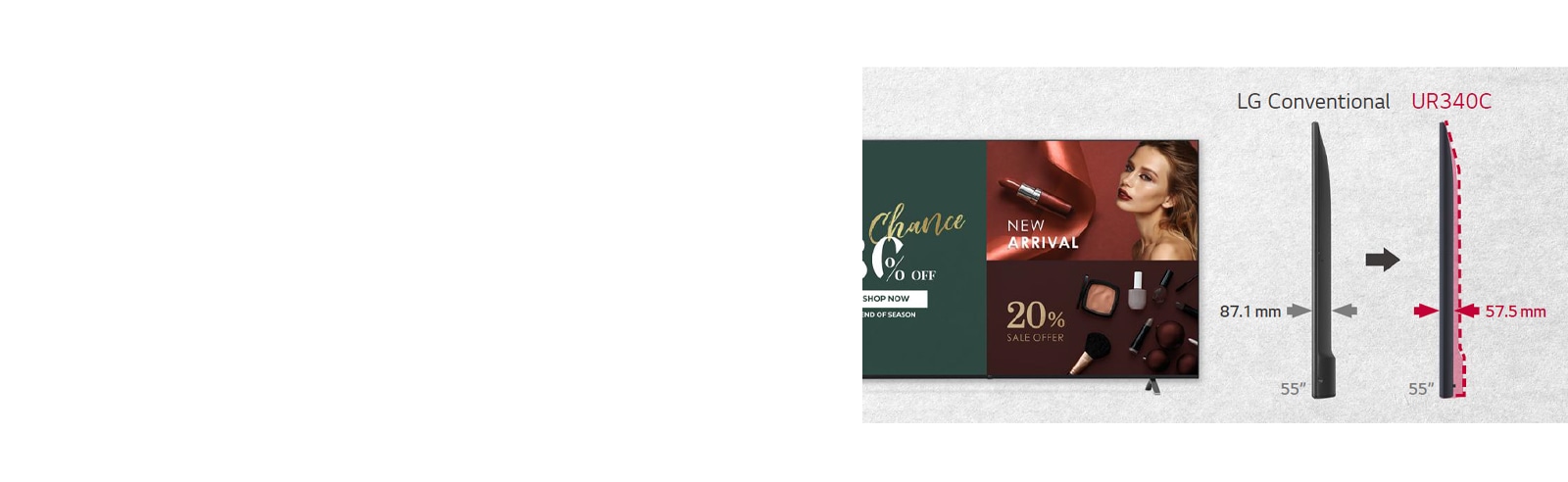

Space-fitting Slim Design
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ashed blue colour improves the dcor of the space where the product is installed.
Welcome Screen
The UR340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.

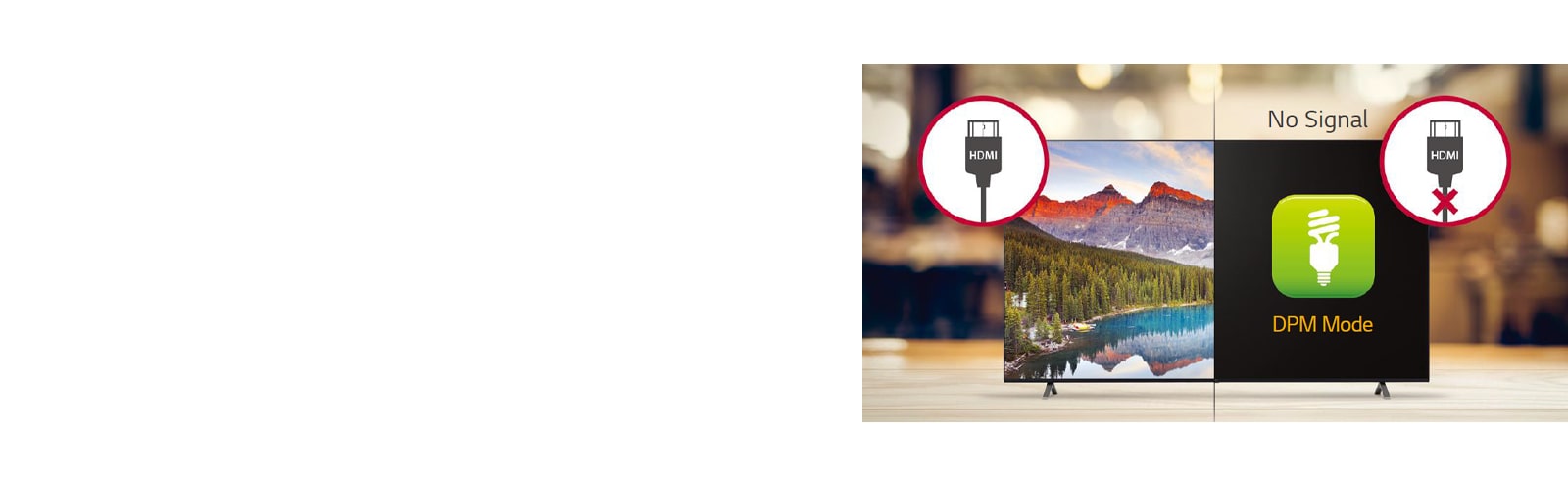

Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.
On/Off Time Setting
Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.

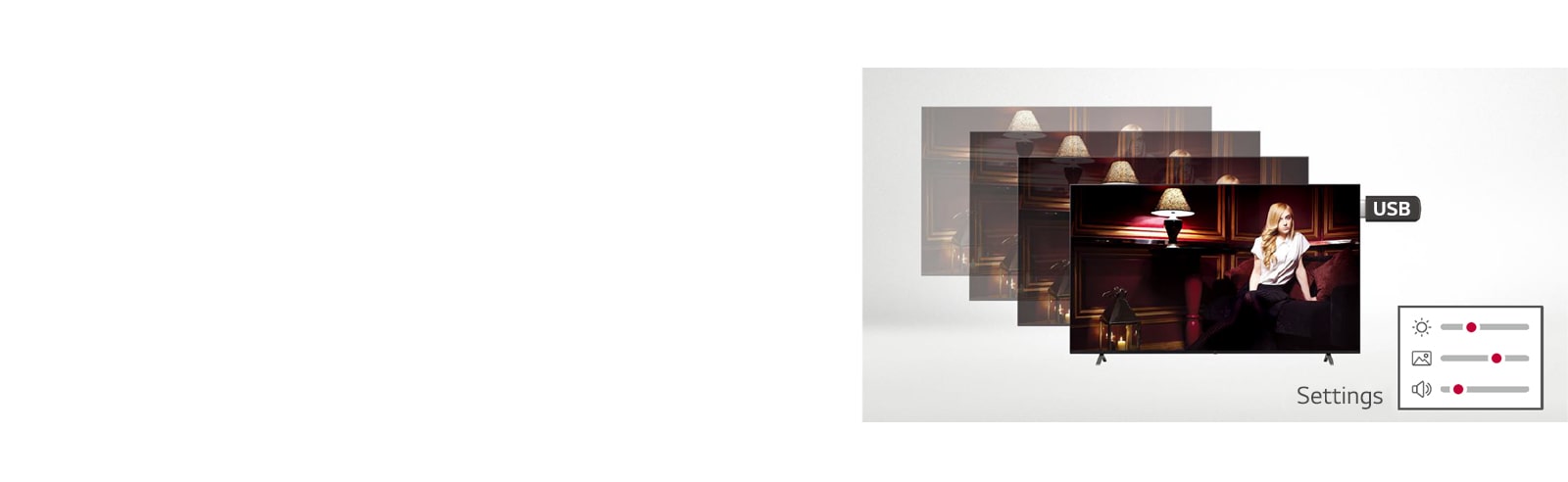

USB Data Cloning
USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.
Crestron Connected Certified
The UR340C series has been certified by Crestron Connected, resulting in seamless integration and automated control* in the meeting room, boosting business management efficiency.

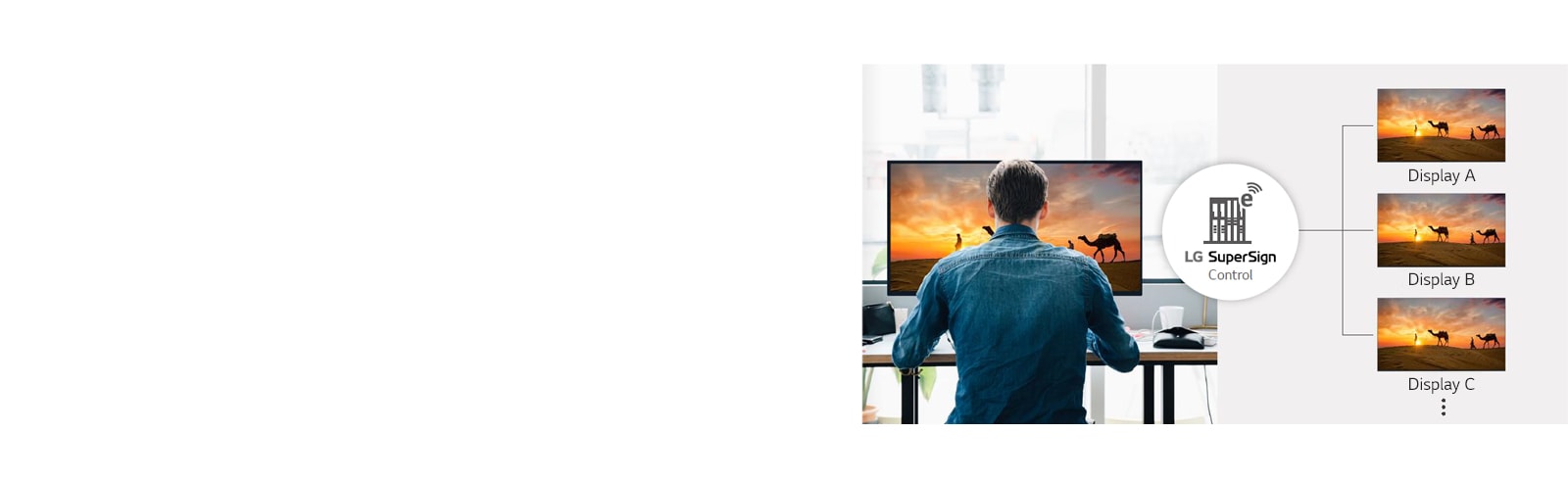

Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
| WARRANTY & OTHER | |
|---|---|
| Accessories | Chromecast anti-theft cover (optional), RS232 9-pin to 3.5mm adapter, 2m power cable (attached), remote control (L-Con) |
| ISTA6 (Packaging) | Yes |
| UL (Certification) | Yes |
| EPEAT (Environmental) | Yes |
| FCC (Regulatory) | Yes |
| UPC | 195174023747 |
| Warranty | 3 Year Limited |
| POWER | |
| Standby Power Consumption | Less than 0.5W |
| Typical Power Consumption | 313 W |
| Max Power Consumption | 339 W |
| Power Supply (Voltage, Hz) | 120 Vac, 50/60 Hz |
| Mechanical | |
| Bezel Width (L/R/T/B) Off Bezel | 6.9 / 6.9 / 6.9 / 18.4 mm |
| Bezel Width (L/R/T/B) On Bezel | 15.9 / 15.9 / 15.9 / 19.9 mm |
| Dimensions without stand(WxHxD) | 75.9 x 43.5 x 2.4 inch(es) / 1927 x 1104 x 59.9 mm |
| Shipping Weight | 128.8 lbs / 58.4 kg |
| Weight with Stand | 101.2 lbs / 45.9 kg |
| Kensington Lock | Yes |
| Weight without Stand | 99.6 lbs / 45.2 kg |
| VESA Compatible | 600 x 400 |
| Connectivity | |
| RJ45 (LAN) | Yes |
| Mechanical | |
| Colour | Navy Blue (Almost Black) |
| Connectivity | |
| LG SVC only | 3.5mm |
| RS-232C | 3.5mm (4 pole) |
| Digital Audio (Outputs) | Yes |
| USB | Yes |
| RF In | Yes |
| HDMI | Yes (x3) |
| Features | |
| SuperSign Control | Yes |
| NTP sync timer | Yes (Clock Setup) |
| RTC (Real Time Clock) | Yes |
| Time scheduler | Yes |
| Crestron Compatibility | Yes |
| DPM (Digital Power management) | Yes |
| Motion eye care | Yes |
| Energy Saving mode | Yes |
| Moving Picture Playback (SD/HD/Plus HD) | Yes |
| Auto Off / Sleep Timer | Yes |
| USB Auto playback | Yes |
| RJP (remote jack pack) Compatibility | Teleadapt/Guestlink (HDMI CEC) |
| Insert Image | Yes |
| Welcome Screen (Splash Image) | Yes |
| Welcome Video | Yes |
| Lock mode | Yes |
| Hotel Mode / PDM / Installer Menu | Yes |
| Multi-code IR | Yes |
| IR Out | Yes (RS-232C) |
| SI Compatible Protoco | TVLink Tuner |
| HTNG-CEC | Yes |
| Simplink (HDMI-CEC) | Yes (1.4) |
| WOL | Yes |
| SNMP | Yes |
| Self Diagnostics (USB) | Yes |
| Mechanical | |
| Dimensions with stand(WxHxD) | 75.9 x 45.9 x 14.3 inch(es) / 1927 x 1167 x 362 mm |
| Features | |
| HDMI-ARC | ARC, HDMI2 |
| USB Cloning | Yes |
| SW Clock (World Clock / Alarm) | Yes |
| Broadcasting System | ATSC, Clear QAM, Analog NTSC |
| Audio | |
| LG Sound Sync (Bluetooth Required) | Yes |
| Speaker System | 2.0 ch |
| Built-in Speakers | 10W + 10W |
| Display | |
| HDR_HLG | Yes |
| HDR_HDR 10 Pro | Yes |
| Life Span | 30,000 hrs |
| Refresh Rate | 120 Hz |
| Response Time (G to G) | 5 ms |
| Dynamic Contrast Ratio (Dynamic MCI (Hz)) | 1,000,000 : 1 |
| Static (Panel) Contrast Ratio | 1200:1 |
| Brightness | 330 nits |
| Diagonal | 86" |
| Resolution | 3840 X 2160 (UHD) |
| Mechanical | |
| Shipping Dimensions(WxHxD) | 83.3 x 47.8 x 9.0 in inch(es) / 2115 x 1215 x 228 mm |
