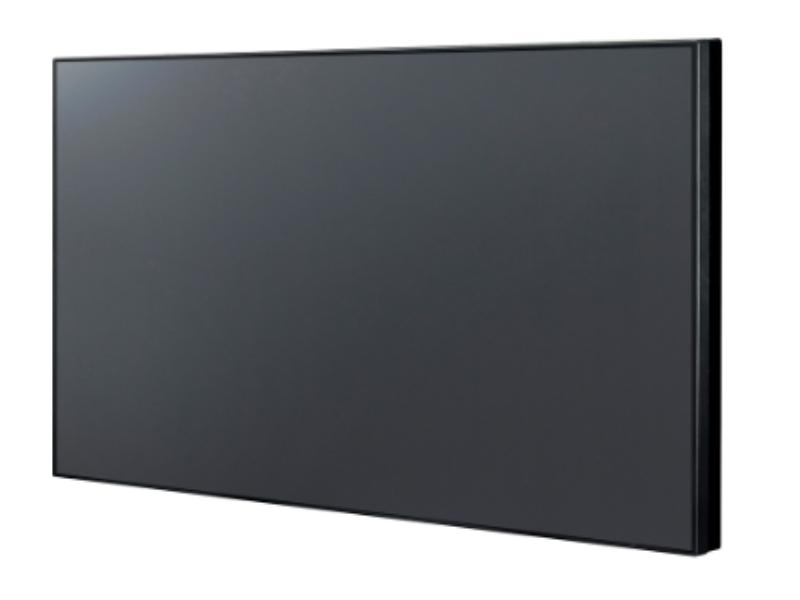

3.5 mm Bezel to Bezel Full HD LED Display for Video Walls
- Outstanding Picture Quality & Visibility
- Flexible Installation
- High Reliability & Continuous 24/7 Operation
Ultra-narrow bezel for seamless and large-screen layouts
The ultra-narrow bezel results in joints that are only 3.5mm (0.14") wide for video wall installations. Even in large-screen configurations; the screen borders can barely be seen; so images are powerful and natural.
Brightness level of 700 cd/m2 provides high visibility even in large public spaces. In addition; the display is treated with an anti-glare surface treatment. The Anti-Glare layer on the glass panel scatters light reflected from the sun or illumination to reduce glare and provide greater visibility.
Video, audio and control signals via DIGITAL LINK single cable daisy chain
The terminal board for the TH-55LFV70U is equipped with a DIGITAL LINK output terminal. Video; audio and control signals are combined into one DIGITAL LINK signal and can be transmitted by single cable chain connection. This enables not only a multi-screen system to be configured using only displays and video sources with no need for a video splitter or other device; but also easy installation and control of multi-screen system thanks to simple cabling.
Failover and failback functions support emergency situations
The TH-55LFV70U is equipped with digital signal input terminals of (2) DVI-D; HDMI; DisplayPort; DIGITAL LINK; and USB. If the main video and audio signals are interrupted the system immediately switches to alternative signals. This makes it ideal for mission critical control rooms and surveillance centers.
Installation frame simplifies setup
The optional installation mount make sit much easier to configure a video wall. There is no need for complicated display positioning; and fluctuations between installers are covered. This also saves time and cuts labor costs.
High reliability enables continuous 24-hour operation and portrait installation
The use of a highly durable glass panel and electronic components allows for continuous 24-hour operation; ideal for installation in public places and surveillance stations.
It is ideal for use in surveillance stations and public facilities. A built-in cooling fan automatically operates (when set to Auto) depending on the temperature. This prevents overheating in the upper screens of a multi-screen installation; which are easily subject to heating. The TH-55LFV70U can also be installed either horizontally or vertically; without any difference in panel life; so there is no effect on TCO.
|Screen Size (Diagonal)
|54.6-inch (1387 mm)
|IPS panel / Direct-LED
|Effective Display Area (W x H)
|1,209 x 680 mm (47.6 x 26.7 in)
|Resolution (H x V)
|1920 x 1080
|Dynamic Contrast Ratio
|Response Time (G to G)
|Viewing Angle (Horizontal/Vertical)
|178° / 178° (CR≥10)
|Panel Surface Treatment
|Anti-Glare (Haze: 44 %)
|8 Ω, 20 W [10 W + 10 W]
|Landscape / Portrait
