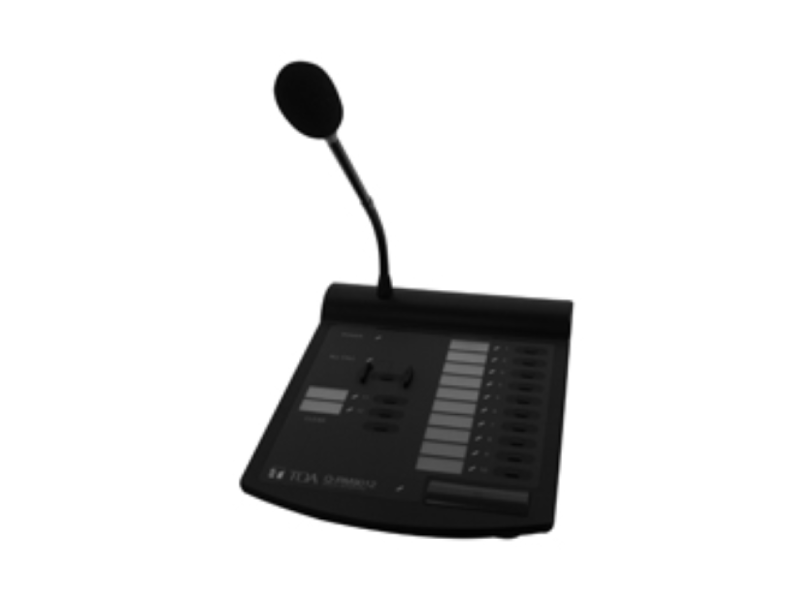

TOA Remote Microphone with 9000M2 Series Mixer Amplifiers - Q-RM9012
Literature
Q-RM9012 is a remote microphone used in conjunction with 9000M2 Series Mixer Amplifiers or other paging equipment. Output is up to 12 contact closures together with balanced audio signal inorder to initiate / terminate the paging. This unit requires DC 24V power supply.
Specifications | |
---|---|
Power Source | 24 V DC from AC adaptor AD-246 or the equivalent |
Power Consumption | 80mA or less |
Audio Output | 0 dB*, 600Ω transformer balanced, RJ45 connector |
Distortion | 1% or less |
Frequency Response | 100-20,000Hz |
S/N Ratio | 60dB or more |
Microphone | Unidirectional electret condenser microphone |
Control Output | 12 channels, open collector output, withstand voltage: 27V DC, control current: max. 50 mA, (2) RJ45 connectors |
Number of Keys | 12 zone selection keys, all call key, cancel key, talk key |
Volume Control | Microphone volume control |
Operating Temperature | -10°C to +40°C (14°F to 104°F) |
Finish | ABS resin, black |
Dimensions | 190 (W) x 76.5 (H) x 215 (D) mm (7.48" x 3.01" x 8.46") (Gooseneck microphone excluded) |
Weight | 750g (1.65 lbs) |
Option | AC- Adaptor: AD-246 |
