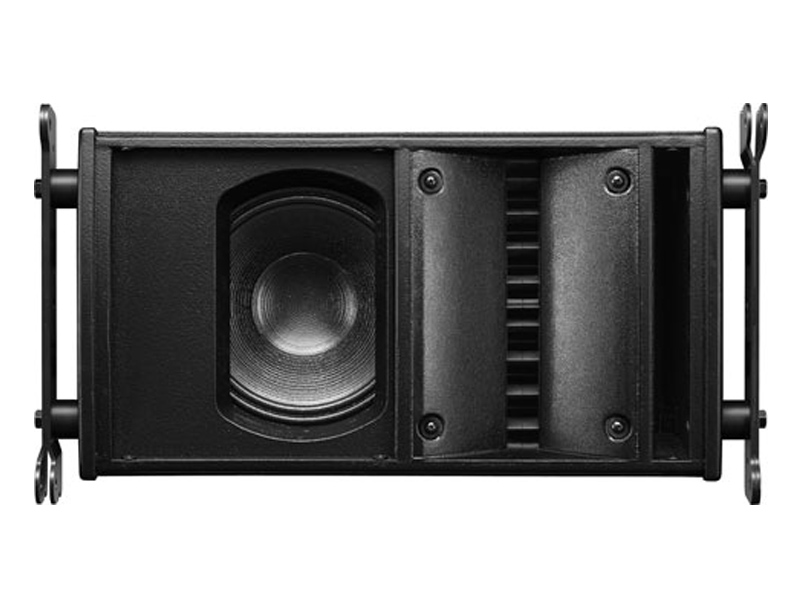

TOA 8" Weather Proof Line Array Speaker - SR-C8LWP

Authorized Dealer Price Match Guarantee
Price Match Guarantee
LR Brown offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Literature

The SR-C8LWP is a 2-way Line Array Speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. It can be converted into the bi-amplifier drive system by changing the internal connection.

TOA Type C speakers are module-type 2-way line array speaker systems featuring a 20-cm (8") low-frequency Neodymium woofer and two 2.5 cm (1") Neodymium drivers. They are designed to take advantage of original TOA phase wave front control technology, enabling creation of a sound field combining clear audio reproduction and uniform sound dispersion. Type C speakers consist of six models: one with a 15° vertical sound dispersion angle, making it ideal for shorter distance applications, another with a 5° vertical dispersion angle, intended for longer range sound dispersion applications, and a 38-cm (15") subwoofer model. Each of these three models is also available in a splash-proof (IPX4) variation. Combining different types of speakers enables creation of an optimal sound delivery system to specified areas. Type C speaker are designed to provide superior audio even in such often inhospitable applications as stadiums, arenas and airports.
Models available: SR-C8L, SR-C8LWP (weather proof), SR-C8S, SR-C8SWP (weather proof)

Type C speakers feature TOA proprietary "Sync-Drive" wave guide technology, to provide a uniform, high frequency sound field offering excellent sound clarity and minimal interference. Thanks to the well thought-out design of the speaker's phase wave-front control technology, high-fidelity sound is produced without causing attenuation of high-frequency sound. By changing the position of an internal connector, Type C series speakers can be used in single or bi-amp mode. SR-C8LWP/SR-C8SWP/SR-C15BWP are available to widen the range of potential applications. More flexible installation options are made possible thanks to a selection of available mounting brackets.

The SR-C8L is a two-way speaker mounting a high-power 20 cm woofer and two compression drivers, and featuring a 5 degree angle of vertical directivity and 110 degrees of horizontal. It is ideal for long-distance applications and can be powered by either one or two amplifiers. By combining the long-distance SR-8L and short-distance SR-8S, a line array speaker system can be built to support a variety of applications.

Specifications
EnclosureBass-reflex type
Power Handling CapacityContinuous program: 360 W (single-amp mode)Low: 360 W, High: 180 W (bi-amp mode)
Rated Impedance16 Ω (single-amp mode)Low: 16 Ω, High: 16 Ω (bi-amp mode)
Sensitivity98 dB (1 W, 1 m) (single-amp mode)Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
Frequency Response65 - 20,000 Hz (when driven with the optional DP-0206's recommended parameters)
Crossover Frequency1,600 Hz (when driven with the optional DP-0206's recommended parameters)
Directivity AngleHorizontal: 110゜, Vertical: 5゜
Speaker ComponentLow frequency: 20 cm (8") cone-typeHigh frequency: Wave front control horn 110゜ (horizontal) × 5゜ (vertical)"+ compression driver × 2
Connected CableDirect cable withdrawal from internal speaker: φ8.6 mm (φ0.34"),"conductor cross section: 1.25 m㎡ (0.05)""4-core cable
Water ProtectionIPX4
FinishEnclosure: Plywood, black, urethane coatingFront grille: Punched stainless steel, black, paint
Dimensions526.6 (W) × 293 (H) × 296 (D) mm (20.73 × 11.54" × 11.65")
Weight17 kg (37.48 lb)
AccessoryM8 connection bolt …4
OptionRigging frame: SR-RF8WPDigital Mixer: D-901Digital Mixing Processor Unit: D-2008SP
